TDA7294 TDA7293, Audio Power Amplifier, board with SMD components using IC TDA7294 or TDA7293, or TDA7295, or TDA729 and other Equivalent ICs. This project features a compact audio power amplifier using the integrated circuit TDA7294, with SMD components for assembly. It is also compatible with ICs TDA7293, TDA7295, and TDA7296, making it ideal for active speakers or as a substitute for damaged boards.
Schematic TDA7294 TDA7293 audio amplifier SMD PCB
Specifications of Integrated Circuits
| IC | Recommended Voltage 4Ω | Recommended Voltage 8Ω | Max power (W) |
|---|---|---|---|
| TDA7293 | ±35VDC | ±40VDC | 120W |
| TDA7294 | ±30VDC | ±35VDC | 100W |
| TDA7295 | ±25VDC | ±30V | 80W |
| TDA7296 | ±22V DC | ±28V | 60W |
Project Features

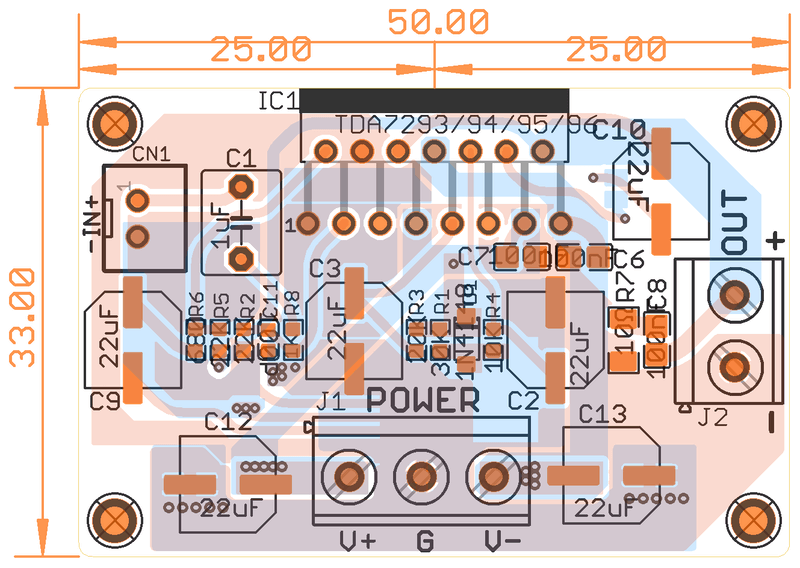

- PCB Dimensions: Only 33 × 50 mm, ideal for small spaces.
- SMD Technology: Components mounted directly on the surface of the plate, ensuring greater compactness and efficiency.
- Simple Configuration: Requires few external components, facilitating assembly.
- Applications: Audio amplification in active speakers, home theaters, background sound systems, or replacement of defective amplifiers.
Operation of the Circuit
The TDA7294 is a class AB amplifier with output based on MOSFET transistors, reducing distortion due to common crossover in bipolar amplifiers. It offers:
- Mute and Standby Mode: External control for muting or putting the circuit on standby.
- Symmetrical Power Supply: Requires a symmetrical power source (e.g. ±24V to ±35V).
- High Sound Quality: Low total harmonic distortion (THD) and wide frequency response (20 Hz to 20 kHz).
Assembly and Care
- Use appropriate heat sinks to prevent overheating.
- It is necessary to isolate the heat sink from the integrated circuit’s metal.
- Make sure the symmetrical power supply provides enough current (minimum of 2A).
Advantages of Using SMD Components:
- Reduction in PCB size.
- Improved thermal and electrical performance.
- Automated process that reduces assembly errors.
This project combines power, sound quality, and compactness, being a practical and efficient solution for various audio applications. For the TDA7294 amplifier, the choice of power supply is crucial to ensure optimal performance, reliability, and safety. Here are the recommendations based on the specifications of the integrated circuit and common practices:
Power Supply Requirements
- Power Supply Voltage:
- The TDA7294 operates with a symmetrical power supply, meaning positive and negative voltages in relation to ground. The recommended range is ±10V to ±40V, with ±35V being the ideal voltage to maximize power and efficiency without compromising safety.
- The absolute maximum voltage is ±50V without signal, but operating close to that limit can cause overheating or failures.
- Current:
- The TDA7294 may require up to 10A of peak current in low impedance loads (4Ω). For continuous use, it is recommended to have a power supply capable of providing at least 3A per channel.
- Regulation:
- A well-regulated source is essential to avoid voltage fluctuations that affect the amplifier’s performance.
Diverse Applications
- It can be used in a wide range of systems, such as:
- Home theaters.
- Amplifiers for musical instruments (guitars and violins).
- Professional audio distribution systems.
- Replacement or upgrade in active loudspeakers.
- Replace defective amplifier board.
BOM
Last update: 01/19/2025 13:36
| Parts | Value | Description | Quantity |
|---|---|---|---|
| Resistors | |||
| R1 | 30K (303) | R0603 — Resistor SMD | 1 |
| R2, R5 | 22K (223) | R0603 — Resistor SMD | 2 |
| R3 | 20K (203) | R0603 — Resistor SMD | 1 |
| R4 | 10K (103) | R0603 — Resistor SMD | 1 |
| R6 | 680 (681) | R0603 — Resistor SMD | 1 |
| R7 | 10Ω (10R) | R1206 — Resistor SMD | 1 |
| R8 | 1K (103) | R0603 — Resistor SMD | 1 |
| Capacitors | |||
| C1 | 1uF | Film capacitor | 1 |
| C2, C3, C9, C10, C12, C13 | 22uF/63V | Electrolytic capacitor SMD 6.3×6.6 | 6 |
| C6, C7, C8 | 100nF/100V | C0805 — SMD Capacitor | 3 |
| C11 | 100P | C0603 — SMD Capacitor | 1 |
| Semiconductors | |||
| D1 | 1N4148 | Switching diode SOD-123 | 1 |
| IC1 | TDA7293, ou TDA7294, ou TDA7295, ou TDA7296 | MULTIWATT15V DMOS amplifier with mute and standby | 1 |
| Miscellaneous | |||
| CN1 | IN — Audio input | XH connector 2.54 mm 2 pins | 1 |
| J1 | POWER — Power supply | Terminal block 3 pin (Kf301, KR301) 5.08 mm | 1 |
| J2 | OUT — Audio input | Terminal block 2 pin (Kf301, KR301) 5.08 mm | 1 |
| SJ1 | Jumper SMD | Select between TDA7293 and the other chips. | 1 |
Download files, links, and notes

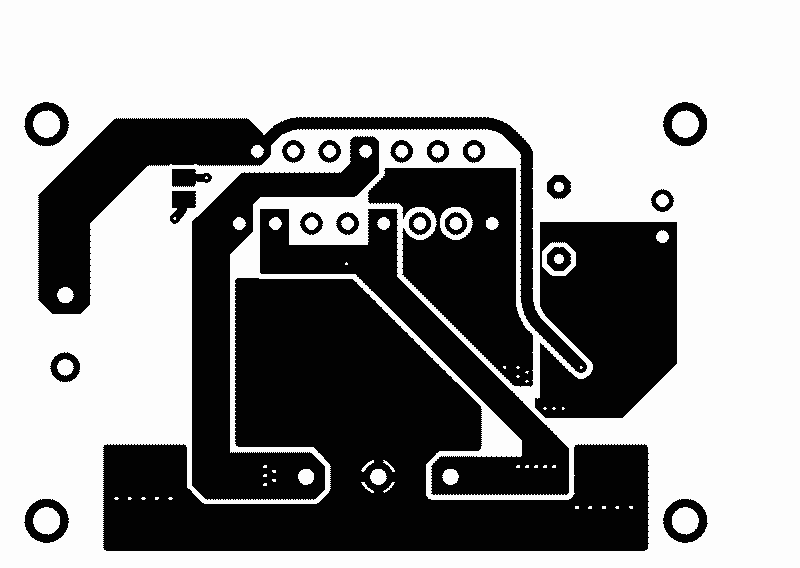

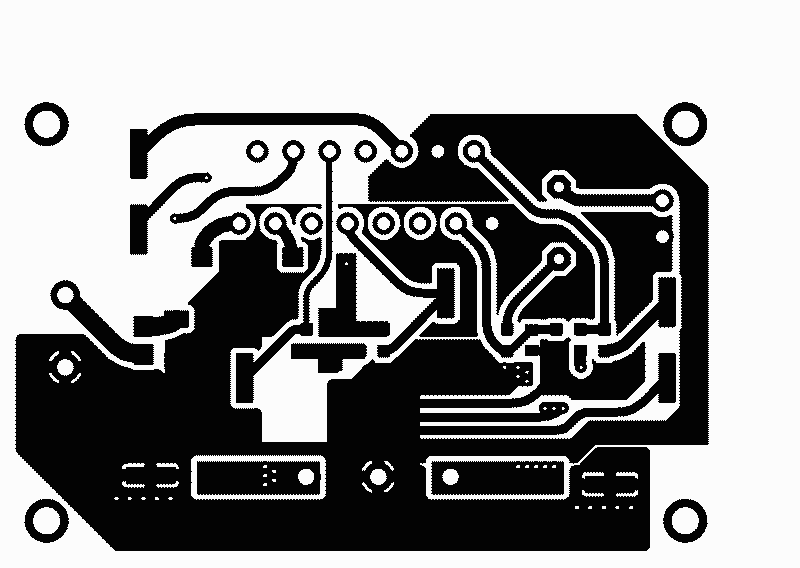

Download PCB in Gerber + BOM + Centroid file + PDF + PNG
