AVR Programmer SMD ZIF Adapter Maxi SOIC-8 SOIC-14, QFN-32 and TQFP-32. The AVR Programmer Adapter Maxi makes it easy to program SMD ATtiny and ATmega in SOIC-8, SOIC-14 and TQFP-32 packages.
The AVR Programmer SMD ZIF Adapter Maxi supports SOIC-8, SOIC-14, QFN-32, and TQFP-32 packages, making it convenient to program SMD ATtinys and ATmegas.
Many boards feature ICSP connectors, or sometimes wires can be connected to the board to program or read the contents of the microcontroller. However, often we need SMD adapters to work with these microcontrollers externally.
To be used with ZIF adapters such as SOP16 to DIP16, Sop8 to DIP8 and TQFP-32 DIP32 and available in stores. These microcontrollers have a DIP version and an SMD encapsulation version, such as the Atmega328 (ATMEGA328-PU) and its TQFP-32 version (ATMEGA328PB-AU), it also has the SMD QFN-32-EP(5×5) encapsulation version (ATMEGA328PB-MU).
It also includes AVR ICSP connectors and a connector to connect an alligator clip.
It can be used in recorders such as USBASP, CH341A, AVRISP MK2, SOFI-SP10-F, TOP3000, TL866 and all others.
There are several types of packages for SMD electronic components such as: SOP, SOIC, MSOP, PSOP, TSOP, TSSOP, SSOP, QFP, MQFP, LQFP, QFN, MLF, DFN, SON, BGA, FBGA…

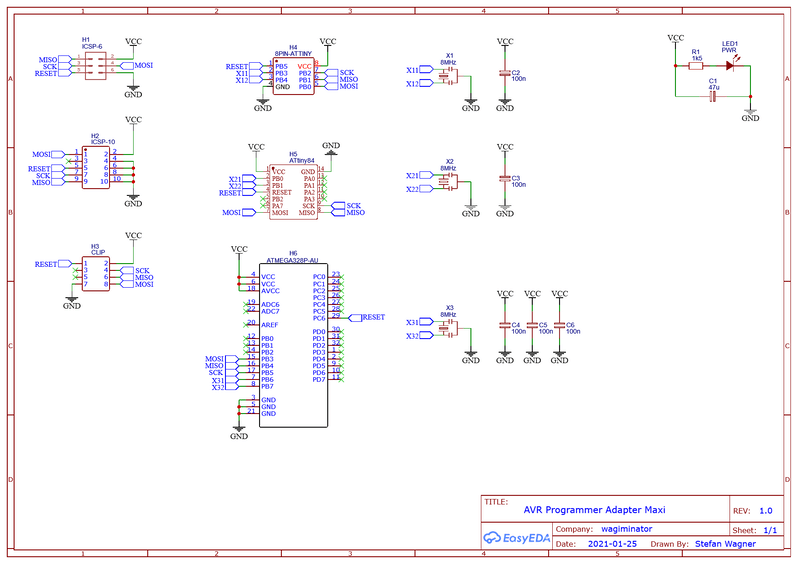

Schematic AVR Programmer SMD ZIF Adapter Maxi SOIC-8 SOIC-14 TQFP-32
Some uses
- SOP16 to DIP16 – SOIC14 – ATtiny24, ATtiny44, ATtiny84
- Sop8 to DIP8 – ATtiny13, ATtiny25, ATtiny45, ATtiny85
- TQFP-32 to DIP32 – ATmega8, ATmega88, ATmega168, ATmega328
- QFN-32-EP(5×5) to DIP 32 – ATmega8, ATmega88, ATmega168, ATmega328
BOM AVR Programmer SMD ZIF Adapter Maxi SOIC-8 SOIC-14 and TQFP-32
| Parts | Value | Description | Quantity |
|---|---|---|---|
| Resistors | |||
| R1 | 1k5 (152) | 603 – SMD resistor | 1 |
| Capacitors | |||
| C2,C6,C3,C5,C4 | 100n | 603 – SMD capacitor | 5 |
| C1 | 47uF | 1206 – SMD capacitor | 1 |
| Semiconductors | |||
| LED1 | PWR | LED_0603 – LED SMD Red | 1 |
| Miscellaneous | |||
| H1 | ICSP-6 | ICSP-6 pin or 2X3 pin 2,54mm Pin header | 1 |
| H2 | ICSP-10 | ICSP-10 pin or 2X5 pin 2,54mm Pin header | 1 |
| H5 | ATtiny84 | DIP14 IC socket or 2x 1X7 2,54mm fenale hader | 1 |
| H3 | CLIP | 2X4 pin 2,54mm Pin header | 1 |
| X1,X2,X3 | 8MHz | SIP-3-2.5mm Ceramic Resonator | 3 |
| H4 | 8PIN-ATTINY | DIP8 IC socket or 2x 1X4 2,54mm fenale hader | 1 |
| H6 | ATMEGA328P-AU | DIP32 WIDE IC socket or 2x 1X16 2,54mm female header | 1 |
Download files, links, and notes
- Download PCB in Gerber + BOM + Centroid file + PDF + PNG + SVG
- Mirror
- BUY SOP8 DIP8 200 mil adapter
- BUY SOP16 DIP16 300 mil adapter
- BUY TQFP-32 DIP32 adapter
- BUY QFN-32-EP(5×5) DIP 32 adapter
Source: https://oshwlab.com/wagiminator/avr-programmer-adapter-v2
