TDA2030 amplifier circuit board diagram. TDA2030 is a circuit integrated monolithic in Pentawat® package, to be used as class audio amplifier AB. Typically, he supplies up to 14 Watts of potency (d=0.5%) @ 14V/4 Ω. The guaranteed potency is 12W in a load of 4 Ω and 8 watts in a load of 8 Ω. Integrated him/it bills with circuits of component protection.
Description of the circuit
Audio amplifier with having integrated tda2030, using source of simple feeding, for potency of 14 watts with a source of 15 volts. That source should be with transformer, rectifications and good filter capacitors, there is no need of regulated source. For protection of the circuit, to use a fuse of 3 amperes in the line of +b of the amplifier. Use a heat-sink of heat in the circuit, integrated tda2030.
See the datasheet of the tda 2030 to know which heat-sink to use. That integrated it is cheaply and easy to find at the market. For a version in bridge for until 28 [email protected] and version using symmetrical source sees the datasheet of the tda2030. That circuit can be fed by car batteries by good time without needing to recharge her. The tda2030 is usually found as amplifier of stage of potency of systems of home theater, it is in those that promise 1000 Watts of potency.
For now, a tda2030 supplies 14 watts, then 5 tda2030 supplies less than 100 watts RMS. But that is a good idea, to use the tda2030 as amplifier of potency of system’s surround, for the subwoofer the ideal is an assembly in bridge for more potency.
Follow us on social media
Circuit diagram audio amplifier with tda2030a

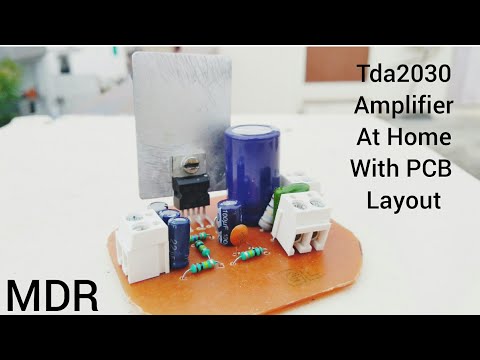

Suggestion of printed circuit board for assembly of the amplifier with tda 2030.
Part list to assemble or amplifier
Last update: 07/28/2021 17:06
|C1A||1uF/100V (Optional)||Polyester Capacitor||1|
|CN1||IN||Terminal block 2 pin 5.08 mm||1|
|CN2||DC||Terminal block 2 pin 5.08 mm||1|
|CN3||OUT||Terminal block 2 pin 5.08 mm||1|
|IC1||TDA2030 or TDA2030A||Audio amplifier IC||1|
|R1||150k||Brown, Green, Yellow, Gold||1|
|R2||4.7k||Yellow, Violet, Red, Gold||1|
|R3, RA, RB||100k||Brown, Black, Yellow, Gold||3|
|R4||1 ohm 1W||Brown, black, gold, gold||1|
|Solda, Fios, Pci, Caixa, fonte|
*The working voltage of the capacitors is related to the maximum DC voltage of the supply:
- Up to 12V—16V capacitors
- Up to 18V—25V Capacitors
- Up to 26V—35V Capacitors
- Above 26V—50V Capacitors
Updated files, including Gerber and new PCB layout
Buy kits TDA2030 in AliExpress with free Shipping in the Worldwide.
