Power audio amplifier module using TDA7293 integrated circuit in modular mode with 2 tda7293 chips in parallel, including compact printed circuit board layout.
Ideal application to be used in several applications where you need an amplifier of reasonable power and small dimensions. It can be used in active amplifier, surround sound, subwoofer, etc.
Gerber file included for you to order the board in the JLCPCB or in your preferred PCB manufacture.
![Audio Power Amplifier Modular Tda7293 Grapfic 1 Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 7 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Modular Application Derating Rload Vs Voltage Supply](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-grapfic-1.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
Vs Voltage Supply
![Audio Power Amplifier Modular Tda7293 Grapfic 2 Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 8 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Modular Application Pd Vs Voltage Supply](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-grapfic-2.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
Supply
Modular application
- The modular application is where several devices operate in parallel.
- The modular application allows very high power to be delivered to very low-impedance loads.
- In this type of application, one device acts as a master and the others as slaves.
The slave power stages are driven by the master device and work in parallel together while - the input and the gain stages of the slave devices are disabled.
- The master chip connections are the same as the normal single ones.
- The outputs can be connected together without the need of any ballast resistor.
- The slave SGND pin must be tied to the negative supply.
- The slave STANDBY and MUTE pins must be connected to the master STANDBY and
MUTE pins. - The bootstrap lines must be connected together, and the bootstrap capacitor must be increased: for N devices the bootstrap capacitor must be 22 µF times N.
- The slave IN pin must be connected to the negative supply.
See this other amplifier with tda7293
Audio power amplifier with IC TDA7294 or TDA7293 – #Minimus
Circuit power audio amplifier stereo IC TDA7293 – 200 Watts RMS
Audio Amplifier Mono With IC TDA7293 -100 Watts

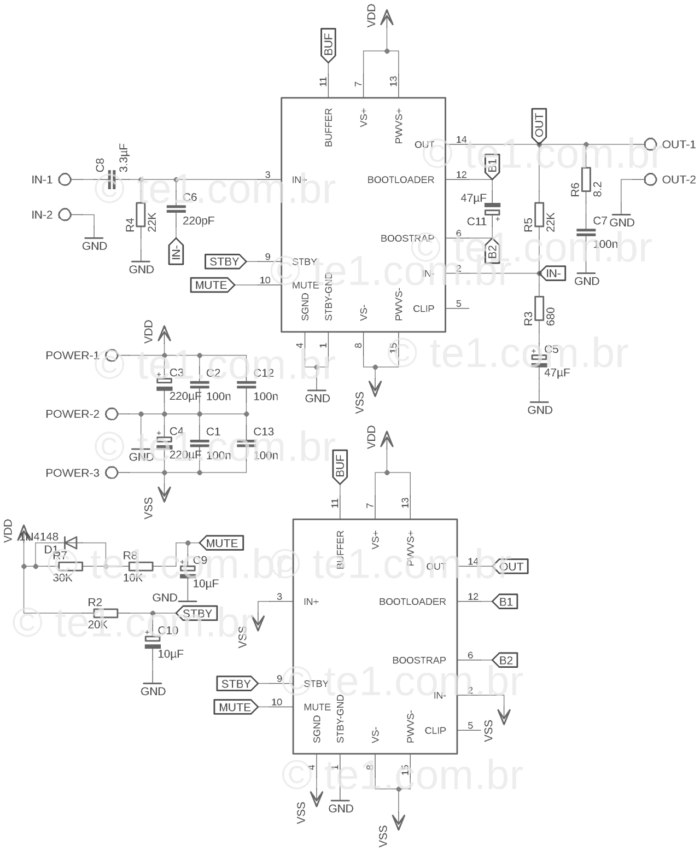

Circuit schematic TDA7293 in parallel
![Tda7293 In Parallel Schematic Circuit Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 9 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Tda7293 In Parallel Schematic Circuit](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/TDA7293-in-parallel-schematic-circuit-700x851.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)

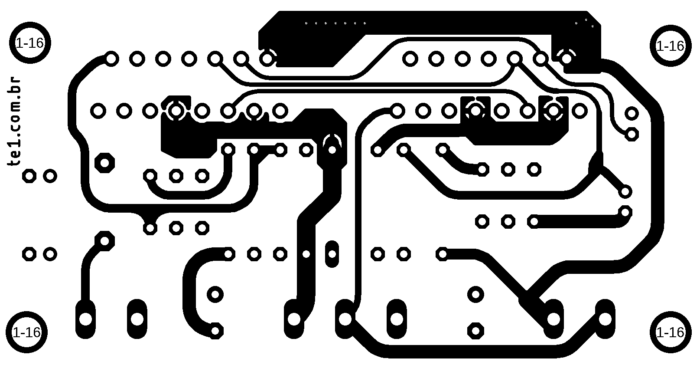

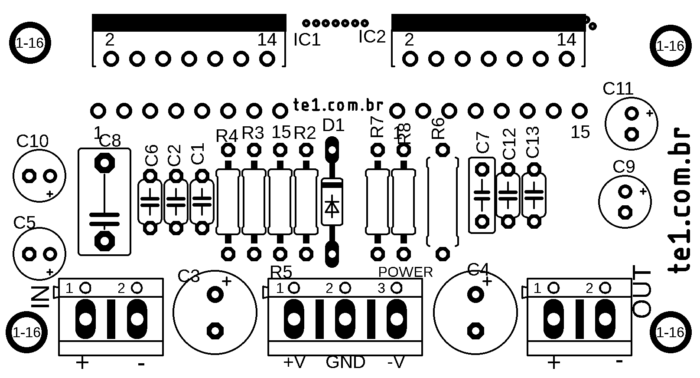

PCB TDA7293 in parallel
![Audio Power Amplifier Modular Tda7293 Board Bottom Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 10 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Audio Power Amplifier Modular Tda7293 Board Bottom](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-board-bottom-700x378.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
![Audio Power Amplifier Modular Tda7293 Board Silk Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 11 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Audio Power Amplifier Modular Tda7293 Board Silk](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-board-silk-700x378.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
![Audio Power Amplifier Modular Tda7293 Board Top Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 12 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Audio Power Amplifier Modular Tda7293 Board Top](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-board-top-700x378.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
![Audio Power Amplifier Modular Tda7293 Board X Ray Tda7293 Audio Power Amplifier Modular Tda7293 In Parallel #Minimus 13 Amplifier, Amplifier Tda, Audio, Circuits, Power Amplifier, Power Amplifier Circuit, Tda, Tda7293, Tda7293 Bootstrap, Tda7293 Chip, Tda7293 Datasheet, Tda7293 Diy, Tda7293 Ic, Tda7293 Pcb, Tda7293 Pdf, Tda7293 Pinout, Tda7293 Popped, Tda7293V, Tda7294 Pcb Audio Power Amplifier Modular Tda7293 Board X Ray](https://edzto98unzj.exactdn.com/wp-content/uploads/2018/08/Audio-Power-amplifier-modular-TDA7293-board-x-ray-700x378.png?strip=all&lossy=1&quality=75&sharp=1&ssl=1)
Item Nº. | Part | Value | Description | Amount |
Resistor’s 1/4W 5% | ||||
1 | R2 | 20K | Can be 22K | 1 |
2 | R3 | 680 | 1 | |
3 | R4, R5 | 22K | 2 | |
4 | R6 | 8.2 | 1W | 1 |
5 | R7 | 30K | Can be 33K | 1 |
6 | R8 | 10K | 1 | |
Capacitors | ||||
7 | C1, C2, C12, C13 | 100n (104) | Ceramic Capacitor | 5 |
8 | C7 | 100n (104, 0.1) | Ceramic or polyester capacitor | |
9 | C3, C4 | 220µF/63V | Electrolytic capacitor | 2 |
10 | C5, C11 | 47µF/63V | Electrolytic capacitor | 2 |
11 | C6 | 220pF (221) | Ceramic Capacitor | 1 |
12 | C8 | 3.3µF/63V | polyester capacitor | 1 |
13 | C9, C10 | 10µF/35V | Electrolytic capacitor | 2 |
Semiconductors | ||||
14 | D1 | 1N4148 | Diode | 1 |
15 | IC1, IC2 | TDA7293 | IC | 2 |
Connectors | ||||
16 | CN2 (IN) | Terminal Block Connector de 2 pins –Â KF350-2P | Audio input | 1 |
17 | CN1 (Power) | Terminal Block Connector de 2 pins –Â KF350-3P | Power supply | 1 |
18 | CN2 (OUT) | Terminal Block Connector de 2 pins –Â KF350-2P | Audio output | 1 |
Miscellaneous | ||||
Welding, Wires, PCB, Box, symmetrical power supply 20V to 40V, heat sink, etc. |
Download the files of printed circuit boards in PDF and Gerber to assemble the amplifier.
Download
Mirror
Download do datasheet IC tda7293
